CE Certified Commercial Ice Maker, Tube Ice Making Machine, 5T Daily Capacity Automatic Tube Ice Machine

Dettagli:

Luogo di origine:	Jiangsu, Cina
Marca:	Yixing ICS
Certificazione:	ce

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 - Insiemi 1
Prezzo:	$14,000.00
Imballaggi particolari:	Le casse di legno in contenitore standard o in di meno che l'insieme del loadEach del contenitore è
Capacità di alimentazione:	1 insieme/insieme al mese

Contatto

Tutti i prodotti

Macchina della macchina per ghiaccio del fiocco (75)

Macchina della macchina per ghiaccio del blocco (63)

macchina del creatore del tubo del ghiaccio (13)

macchina del ghiaccio dei residui (18)

Macchina artificiale delle precipitazioni nevose (15)

Refrigeratore evaporativo del condensatore (11)

Unità di refrigerazione più fresche (12)

Fila di alluminio di refrigerazione (5)

L'energia solare ha messo in contenitori la cella frigorifera (11)

Unità di refrigerazione di conservazione frigorifera (2)

Descrizione di prodotto dettagliata

Forma del ghiaccio:	Pallottola	Capacità di immagazzinamento nel ghiaccio:	NESSUNO
Industrie applicabili:	Hotel, negozi dell'indumento, negozi di materiale da costruzione, fabbrica delle officine riparazion	Dopo servizio della garanzia:	Video supporto tecnico, supporto online, servizio dei pezzi di ricambio, di manutenzione sul campo e
Posizione di servizio locale:	NESSUNO	Posizione della sala d'esposizione:	NESSUNO
Circostanza:	Nuovo	Tensione:	220V/380V
Potere:	4.5kw	Dimensione (lwh):	13209501800 millimetro
Peso:	4500kg	Garanzia:	1 anno
Servizio di assistenza al cliente fornito:	Pezzi di ricambio, installazione liberi del campo, incaricante e preparantesi, servizio di riparazio	Punti di vendita chiave:	Automatico
Relazione sull'esperimento del macchinario:	Fornito	Video uscente-ispezione:	Fornito
Tipo commercializzante:	Nuovo prodotto 2020	Garanzia delle componenti del centro:	1 anno
Componenti del centro:	Contenitore a pressione, motore, altro, cuscinetto, ingranaggio, pompa, cambio, motore, SpA	Nome di prodotto:	Macchina del ghiaccio della metropolitana di Yixing ICS
Tipo:	macchina per ghiaccio automatica	Materiale:	acciaio inossidabile 304
Modo di raffreddamento:	Raffreddamento ad acqua/raffreddamento a aria	Compressore:	Bitzer
Refrigerante:	R404a/R22a	Materiale interno dell'evaporatore:	Il acciaio al carbonio/rami/acciaio inossidabile
Sbocco del ghiaccio:	22mm, 28mm 35mm	Sistema di controllo:	Sistema di controllo automatico
Applicazione:	Bevanda-raffreddamento	Porto:	SHANGHAI

Product Description

Product Name	Tube Ice Machine
Cooling Type	Water CoolingAir Cooling
Refrigerant	R22/R404A
Package	standard export packing
Input Power	380V/3P/50HZ
Ambient temp	30℃
Water inlet temp	25℃
condensing temp	42℃
Compressor running power	4.25kw
Installation power	6kw
Dimension	13209501800mm
Net weight	650kg

Product performance description

Tube ice machine is one kind of ice making machine. It is named for the regular cylindrical hollow Tube shape of the ice it produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.
The tube ice produced by tube ice machine is a kind of ice block with irregular length and hollow tube. Its inner hole is 5mm~15mm, and the length is 25mm~42mm. There are various sizes to choose from. The outer diameter of the ice is as follows: 22, 29, 32, 35 mm, etc. It is suitable for daily consumption, vegetable preservation and fishery products preservation.

Features

Pure Ice	Using Pre-PurifyTM water purification technology to filter the incoming water, the ice cubes are crystal clear.
Perfect Design	All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.
Safety and Hygiene	Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.
Efficient Performance	The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.
Energy Saving And Water Saving	Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, superheat of return gas and oil return, so as to ensure stable operation of compressor unit under safe working conditions.
High Quality Accessories	More than 80% of the refrigeration equipment accessories produced by Ice Source use well known brands at home and abroad. For example, Bitzer is used for the compressor. Hansen, Danfoss, Emerson and other world famous brands are used as refrigeration accessories.
Customized	The refrigeration equipment produced by Ice Source can operate normally under the working conditions of -20~+50℃ and water inlet temperature of +0.5~+45℃. The company can not only provide all kinds of standard refrigeration equipment for you but also customized the refrigeration system under special working conditions according to the actual needs.
Stable and Reliable	Perfect design, reduce the equipment internal unnecessary transmission parts, so that the equipment more simple and reliable. The unit is generally equipped with low water level, water flow, full ice, high pressure compressor, low pressure of compressor, oil pressure of compressor, et., so that the equipment can operate stably, reliably, and safely, and can operate continuously for more than 3000 hours without fault.
Standardization	Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.
Fully Automatic	PLC computer module automatically controls ice making process at a glance.

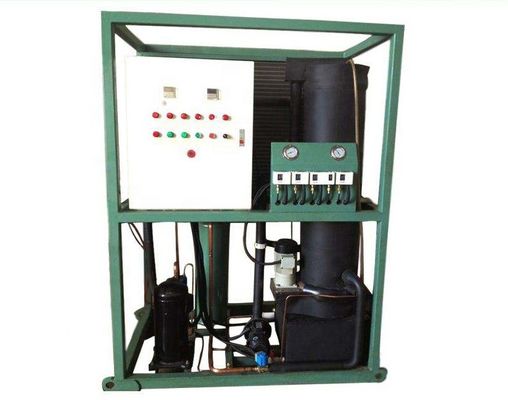

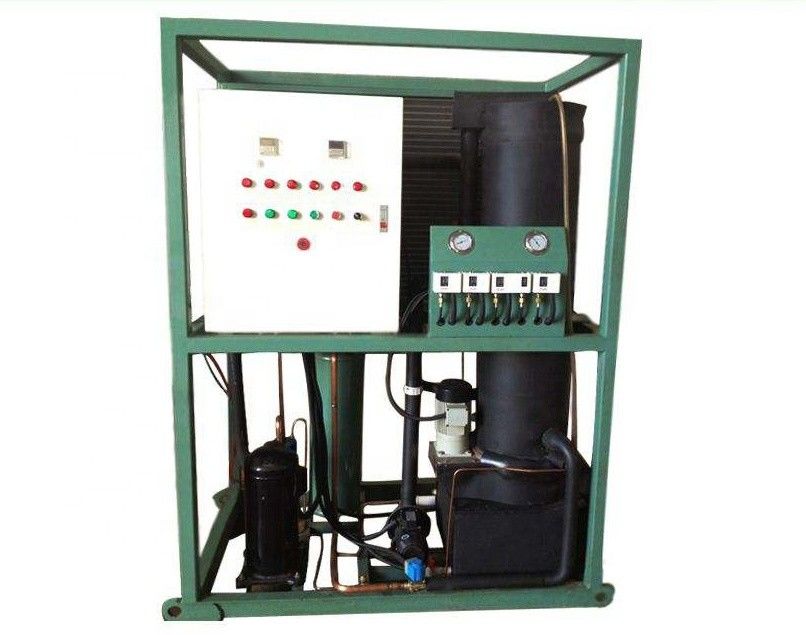

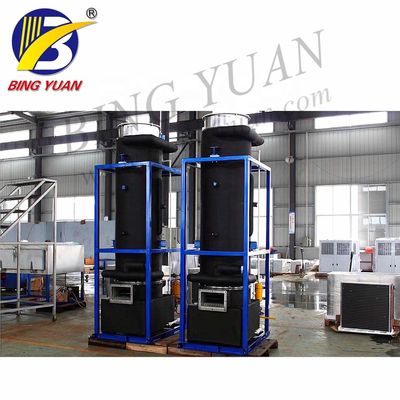

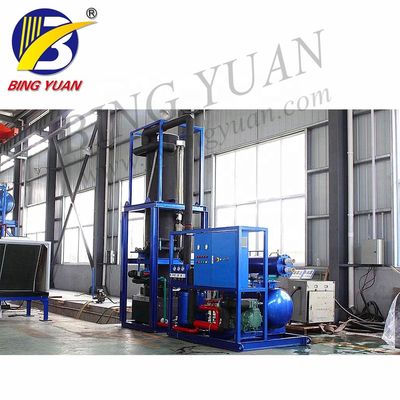

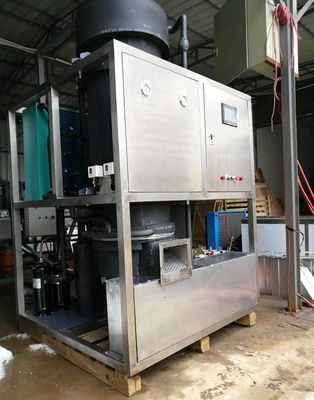

Detailed Images

Structure

The structure of tube ice machine mainly includes evaporator, condenser, water storage tank, compressor and liquid storage tank. Among them the evaporator structure is the most complex, the accuracy requirement is the highest and the manufacturing difficulty is the biggest.

Classification

Tube ice machine can be divided into small tube ice machine and large tube ice machine according to the daily output ( According to the international standard of working conditions: dry bulb temperature of 33°C, inlet water temperature of 20°C ) . The daily ice production of small tube ice machines ranges from 1 ton to 8 tons, and most of them are single structure. The daily ice production of large tube ice machine is from 10 tons to 60 tons, most of which are compound structure and need to be equipped with cooling tower.

Ice making process

Ice making ---Ice collecting/delivering---
Ice Packing and weighing---
Ice storage

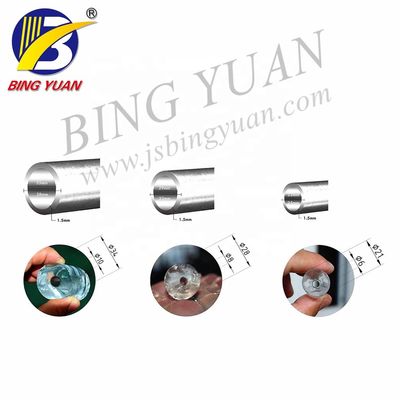

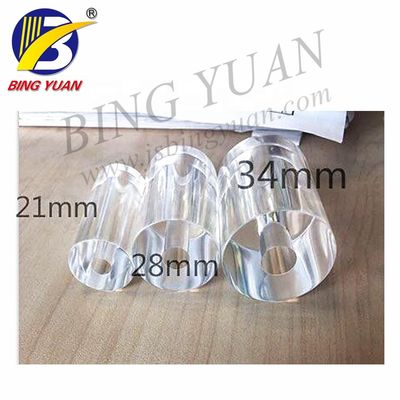

Ice shape choice

Choice 1-S: φ22*H35mm, inner hole 5mm,12g. Choice 2-M: φ28*H40mm, inner hole 8mm, 20g. Choice 3-L: φ35*H50mm, inner hole 12mm, 42g

Product Usages

Daily consumption

Vegetable preservation

Fishery products preservation

Drinks Cooling

Medical Industry

Chemical Industry

Pre-sale service

* Inquiry and consulting support
* Sample testing support
* View our Factory

After-sale service

* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas

Company Introduction

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
